Enhanced Lithium Battery Series

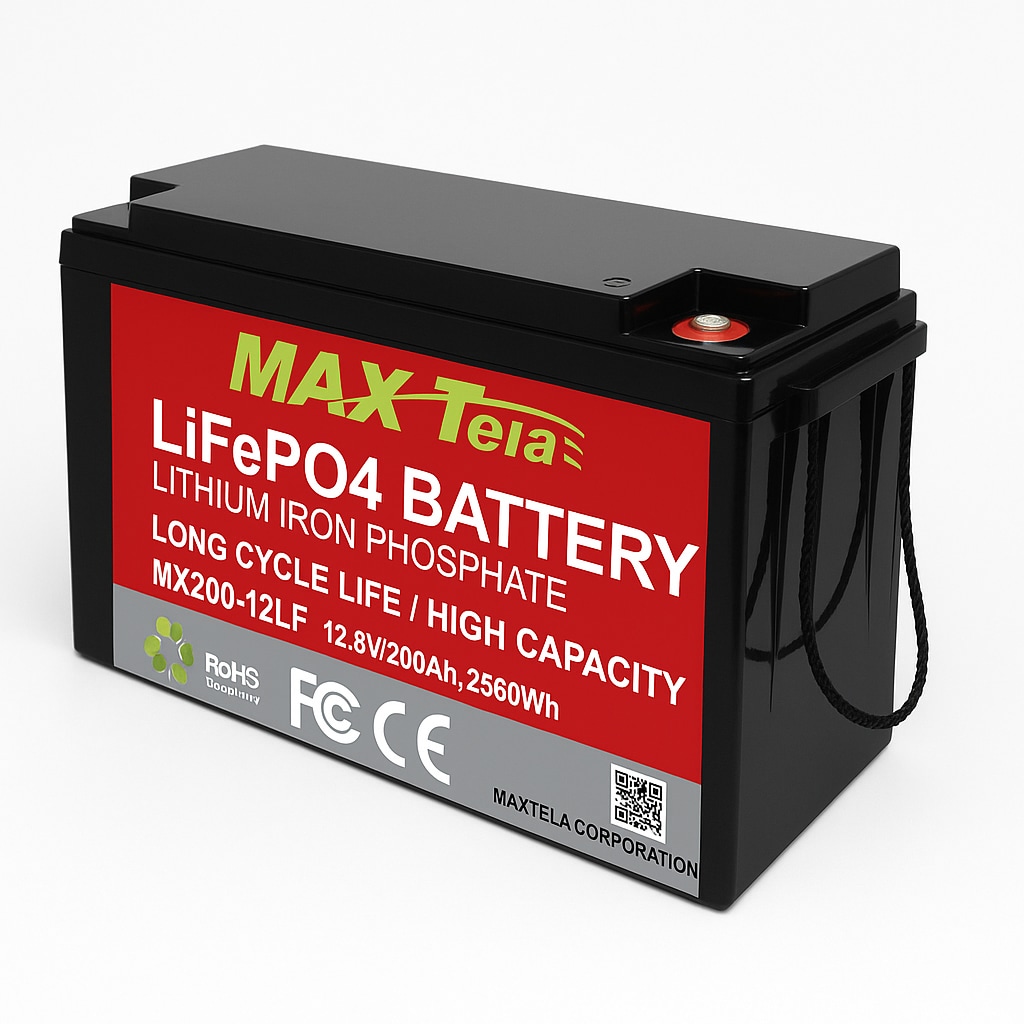

12V 200Ah Enhanced LFP Battery
Model name：MX200-12LF
Maxtela's Enhanced Lithium Iron Phosphate (LiFePO4) Battery Series with high power energy and a long life cycle, a specific design to fit its wide range capabilities relying on the built-in BMS. Enhanced Lithium Battery Series offers excellent performance and leverages with intelligent technology, to last the protection throughout the whole use. Suitable for use in AGV, Storage energy, Telecom, Mobile motors applications, and much more. (Customized design is also available when you need it.)
Features：
Battery Management System (BMS) precisely controls the data of the battery to provide reliable performance and battery life.
- Compact and lightweight design reduces 40%~50% of the weight comparing to lead-acid batteries.
- Higher battery capacity lasts the usage time for industry applications much more than ever.
- Significant discharge rate delivers times of power comparing to lead-acid batteries.
- Allow the faster charge, lower self-discharge rate
- Much longer cycle life than lead-acid batteries
Compatible battery case with the present application space.
Specification：
Nominal Voltage: 12.8V
Rated Capacity: 200Ah
Stored Capacity: 2560Wh
Cell Type: LiFePO4
Cell Voltage: 3.2V
Charge Voltage: 14.6V max
Recommended Discharge 10.8V
Cut-off Voltage:
Recommended charge/discharge 50A
Standard charge/discharge 100A
PCM: YES
Charge Mode: CC/ CV
Self Discharge Rate: ≤3% /month
Charge Temperature: 0°C~ 45°C
(32°F~113°F)
Discharge Temperature: -20°C ~ 60°C
(-4°F~140°F)
Discharge Humidity: RH ≤ 85%
Storage Temperature: -10°C ~ 40°C
(14°F~104°F)
Dimension (Lx Wx H): 484x168x240 mm
Weight: 21Kg
Terminal Type: M8
